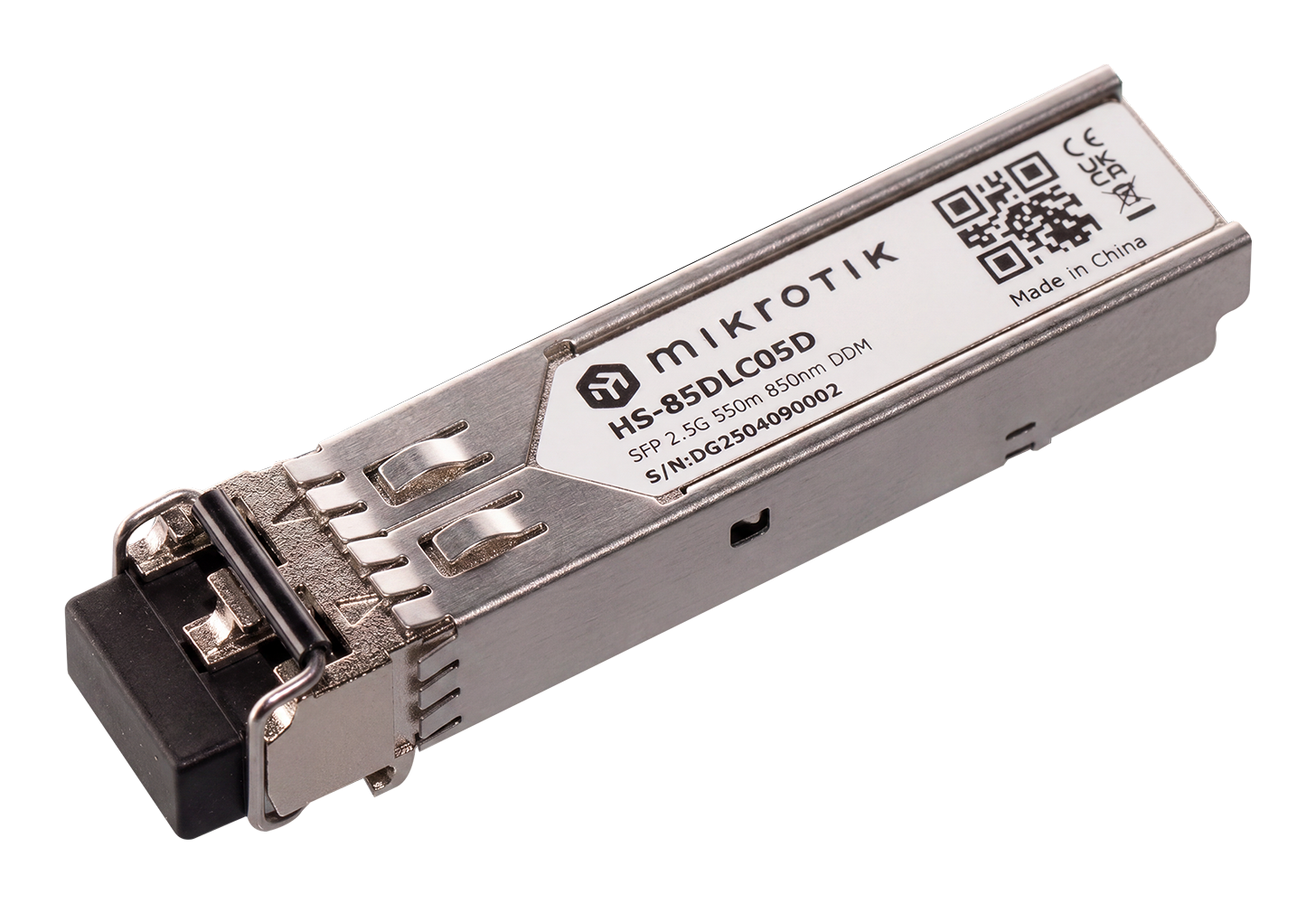

The MikroTik HS-85DLC05D is an SFP transceiver that offers throughput of up to 2.5 Gb/s, unlike standard 1 Gb/s modules. It is dedicated to MikroTik devices whose SFP interface also supports higher bandwidth. Transmission can be carried out using multimode (MM) fiber, over a maximum distance of 550 m. It should be noted that the range depends on the type of fiber used and will be lower with OM1 / OM2 fiber types. The module operates at a wavelength of 850 nm and features two LC-type optical connectors.

2.5 Gb/s SFP Module

The offered product is an SFP transceiver that supports throughput of up to 2.5 Gb/s, unlike most modules that support 1 Gb/s. It has been designed for use in MikroTik devices that feature SFP slots with 2.5 Gb/s bandwidth support.

Multimode Fiber, Up to 550 m Range

The module is compatible with multimode fiber and uses an 850 nm wavelength for transmission. The maximum link distance is 550 m. The transmitter power range is -9 to -3 dBm, and the receiver sensitivity is -18 dBm.

LC Connectors

The module uses two (duplex) LC connectors.

Duplex Module

To establish a connection, two optical fibers must be used. The module is equipped with two connectors: one designated for Tx (transmission) and the other for Rx (reception).
