TP-Link LS1005 5-Port 10/100Mbps Desktop Switch

TP-Link LS1005 5-Port 10/100Mbps Desktop Switch

Brand: TP-Link

Product Code: TL-LS1005

Catalog number: 7881

Warranty (months):

Price

4,27 €

5,25 € incl. tax

favoriteAdd to wishlist

Description

The LS1005 is an unmanaged desktop network switch from the LiteWave series, equipped with 5 Fast Ethernet ports (10/100 Mbps). The device operates on IEEE 802.3i, 802.3u, and 802.3x standards and automatically detects the connection speed and cable type thanks to the Auto MDI/MDIX function. The switch uses Store-and-Forward technology and provides a full, non-blocking switching capacity of 1 Gbps (summing up 5 ports at 200 Mbps in full duplex). It features a Plug and Play design, requiring no configuration, with a fanless casing that ensures quiet operation. Additionally, it supports QoS (Quality of Service) based on 802.1p/DSCP priorities and Green Ethernet technology, which allows for energy savings by automatically adjusting power consumption based on cable length and link status.

Let LiteWave Technology Lighten Your Network Load

TP-Link LiteWave series unmanaged switches are an easy and cost-effective way to expand your wired network. The devices are easy to use and reliable. Thanks to plug and play installation, connecting new devices takes only a few minutes. All ports support Auto-MDI/MDIX, so there's no need to waste time selecting the correct cable.

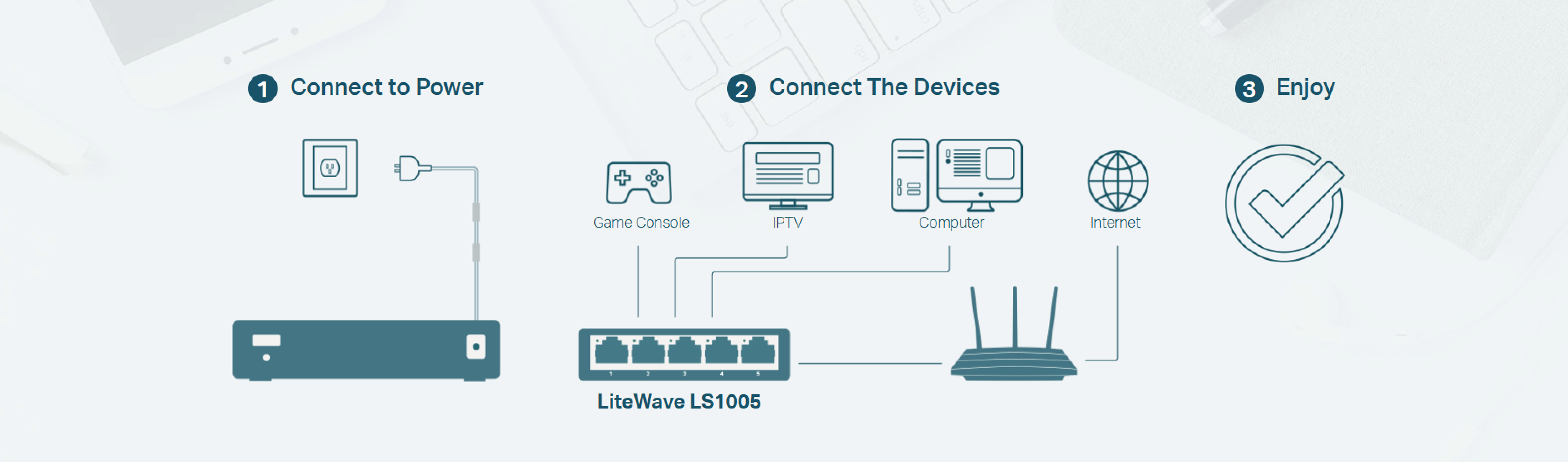

Plug and Play

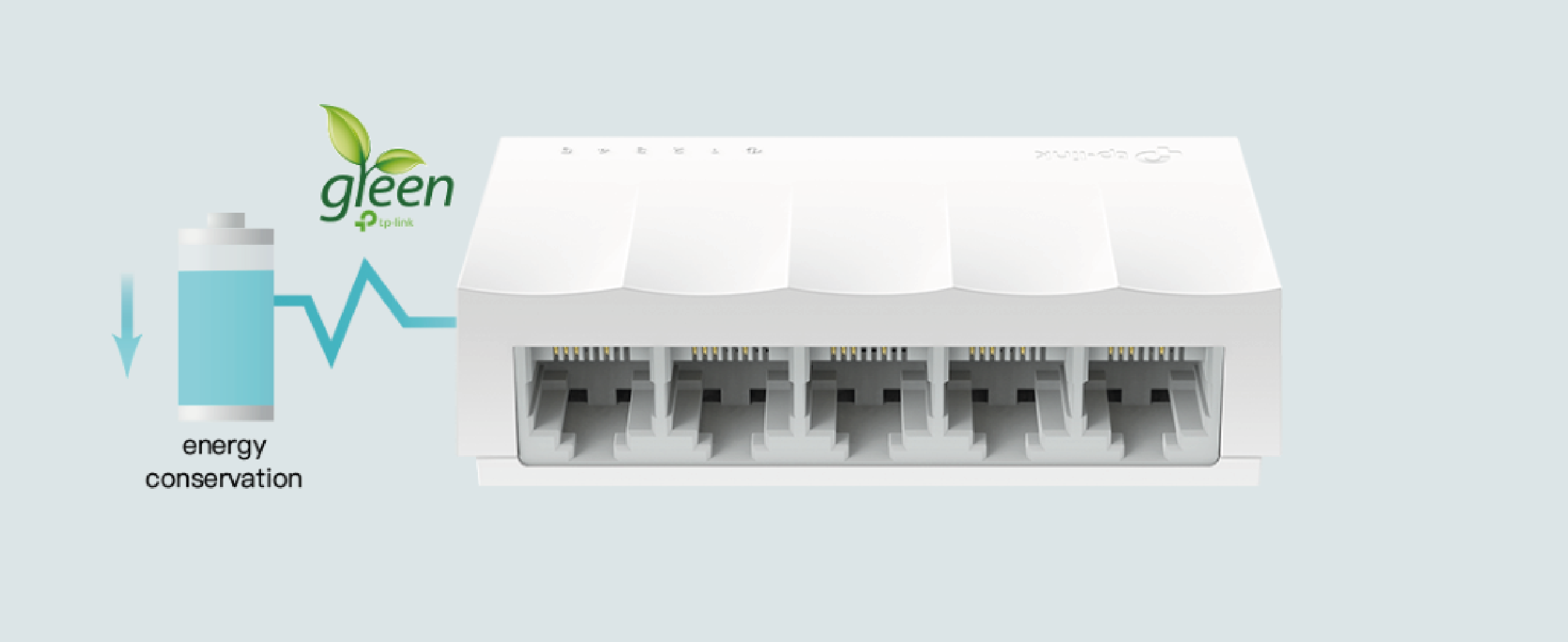

Energy-Efficient Ethernet

LiteWave series unmanaged switches use technology to save energy. The devices automatically adjust the required power consumption based on the link status and cable length, allowing you to enjoy a high-throughput network while saving a lot of energy. By caring for the planet, you also care for your wallet by saving on electricity bills!

Fanless Desktop Switch

The compact size allows the device to be mounted on all countertops and desks. The absence of fans, in turn, ensures quiet operation of the switch.

Let LiteWave Technology Lighten Your Network Load

Specification:

TP-Link LS1005
HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i/802.3u/802.3x
Interface	5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC/0.6A)

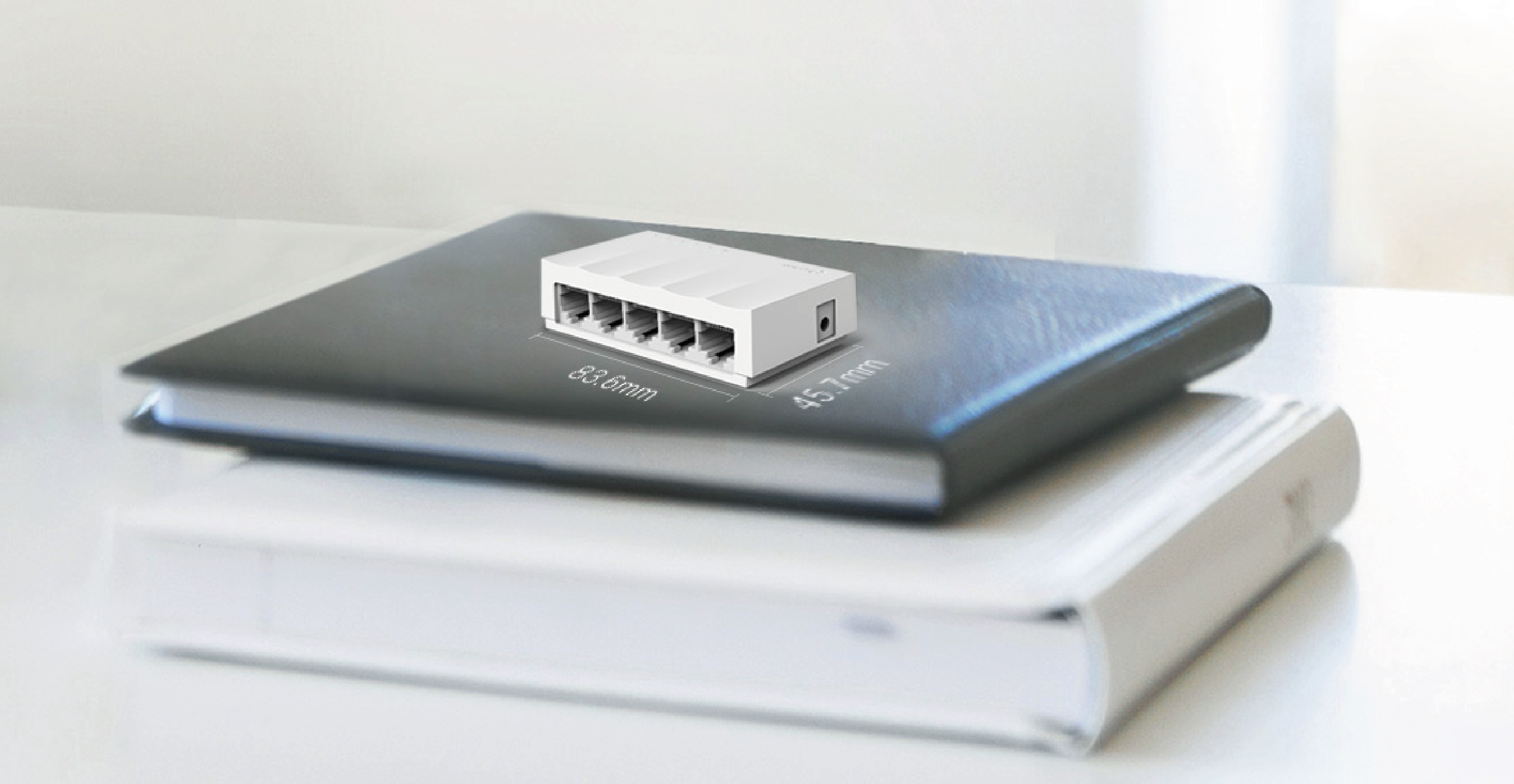

Dimensions ( W x D x H )	3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm)
Max Power Consumption	1.65W
Max Heat Dissipation	5.627 Btu/hr
SOFTWARE FEATURES
Advanced Features	Green Technology 802.3X Flow Control Back Pressure
Transfer Method	Store and Forward
OTHERS
Certification	CE, FCC, RoHS
Package Contents	5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
