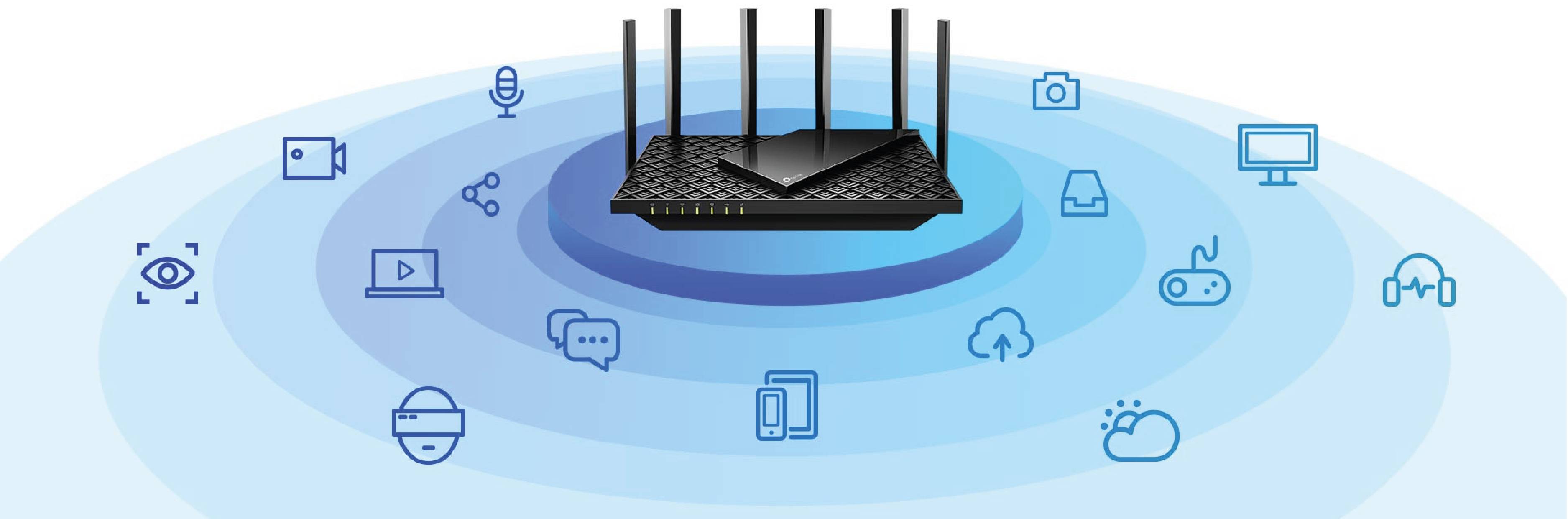

Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Warp Speed for Smooth 8K Streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster?
Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.

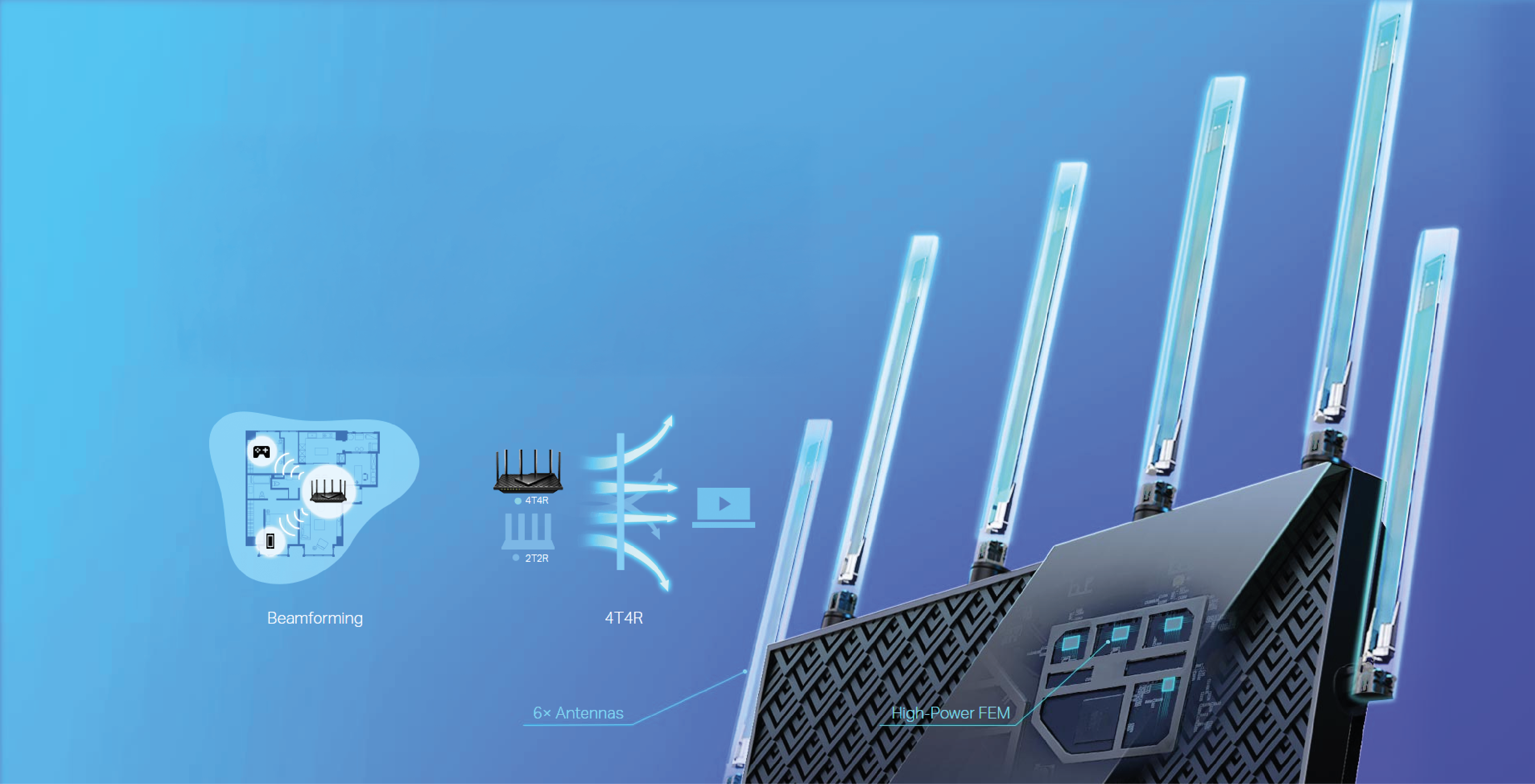

Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6× Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

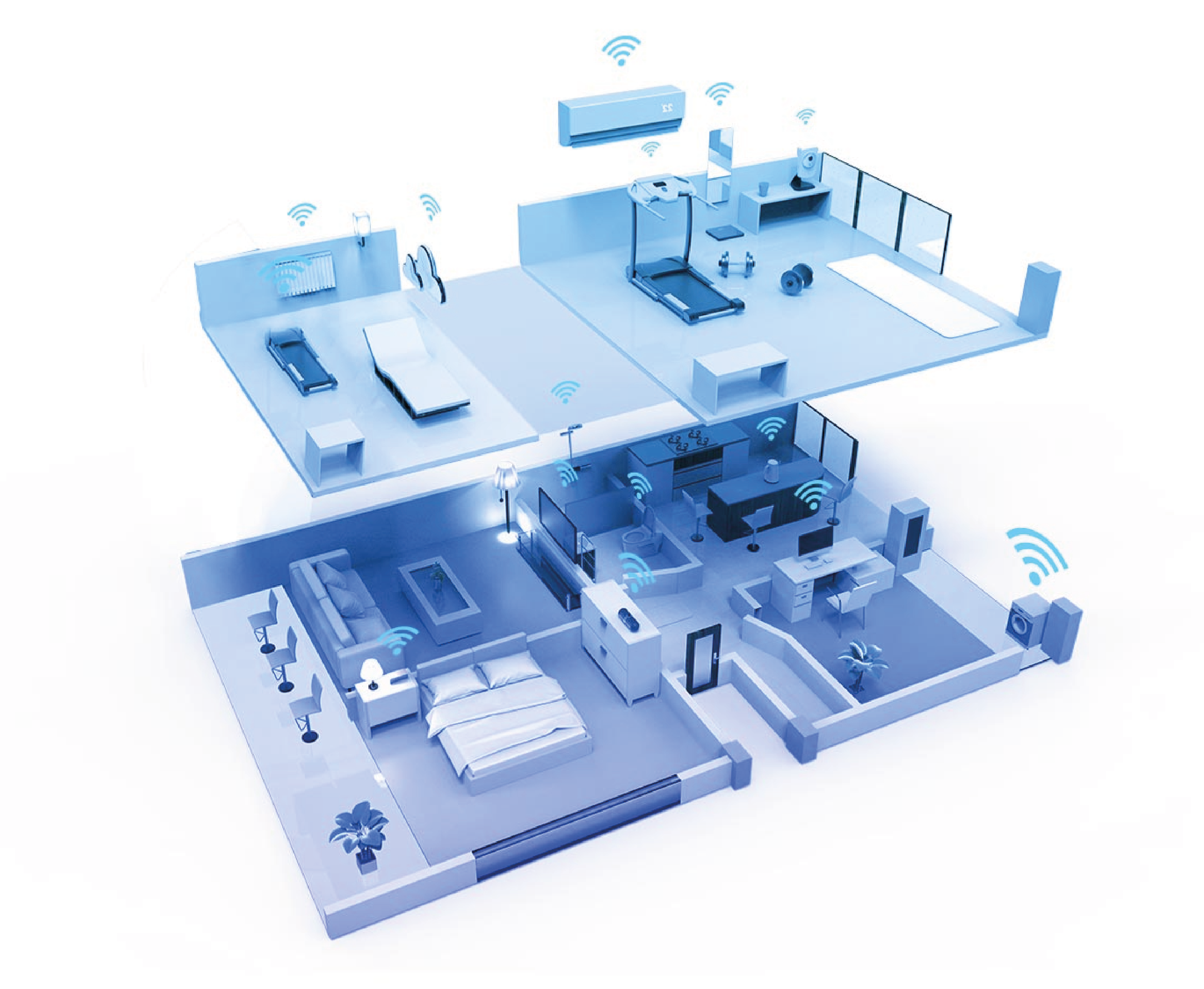

Connect 200+ Devices
Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.
OFDMA
Enables different devices to share one transmission stream, increasing efficiency.
MU-MIMO
Transmits data to different devices simultaneously using multiple streams.

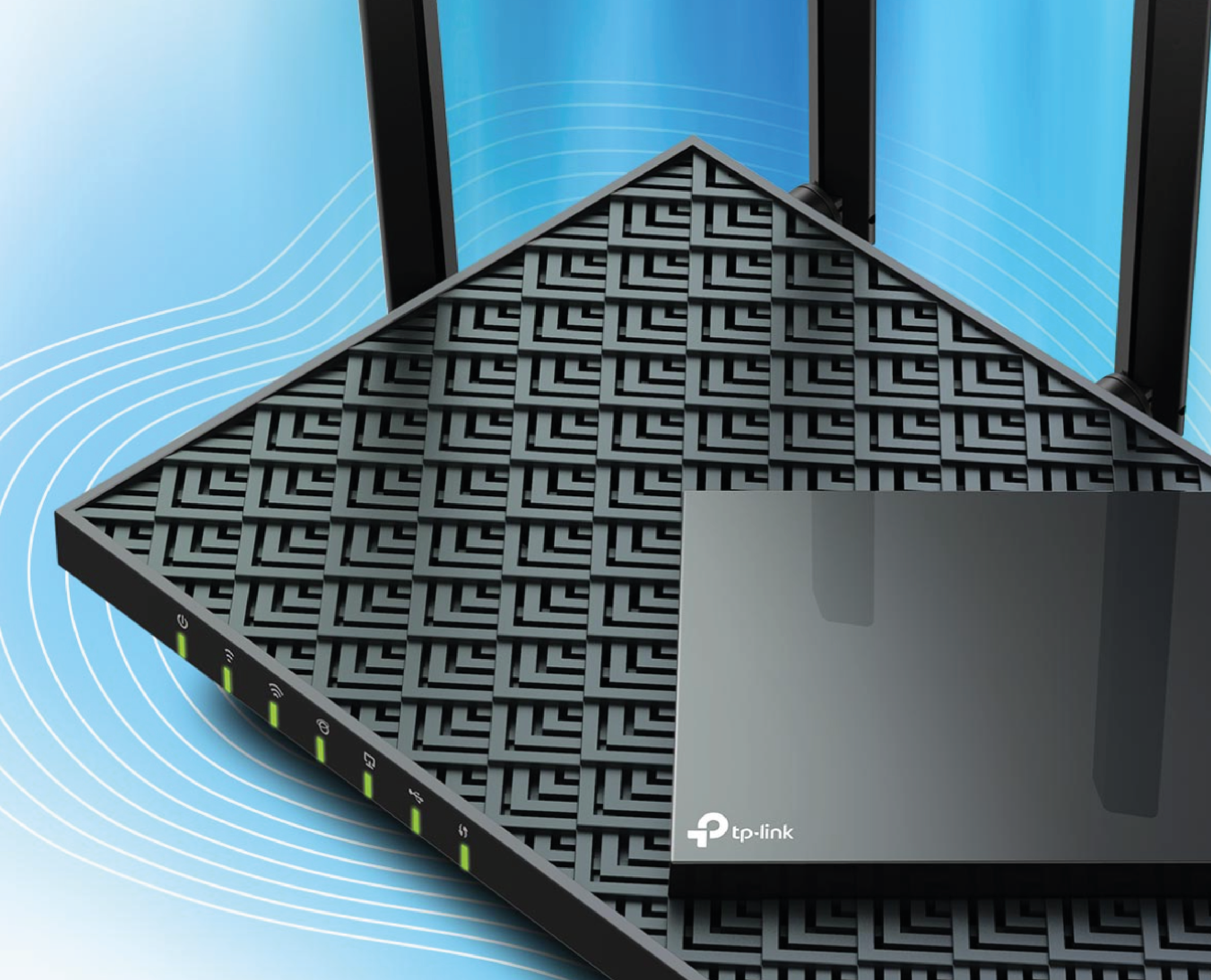

Designed to Be Cool
The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine's full power.

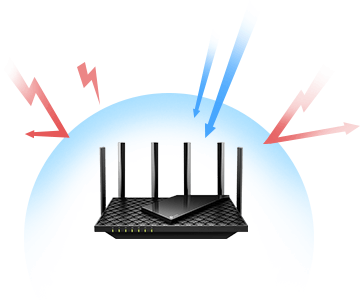

TP-Link HomeShield: Advanced Security for Unlimited Clients
HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.
Enhanced IoT Security
HomeShield identifies IoT devices, including cameras and voice assistants, to block all potential security holes and secure your privacy.
DDoS Attack Prevention
HomeShield will record abnormal incoming traffic, and the device will automatically block requests from enlisted IPs.
Robust Parental Controls
Manage online time and block inappropriate content to keep your family safe online.
Leading Security by Avira®
Avira, an award-winning tech company, relied on by 500 million users, powers HomeShield and continually updates it, ensuring your network stays care-free.

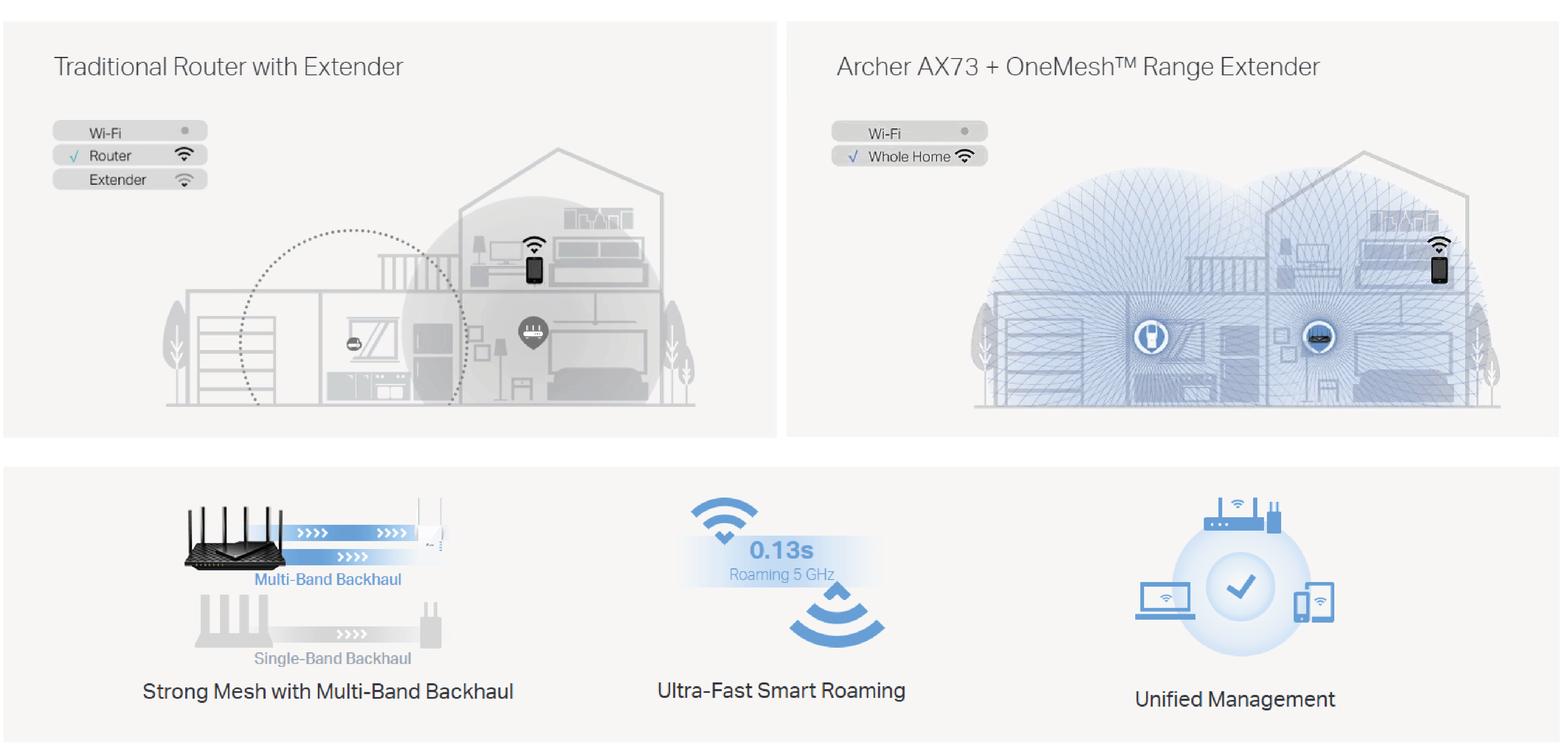

TP-Link OneMesh™: Flexibly Create Whole Home WiFi with Archer AX73
Want to build a whole-home Wi-Fi? Archer AX73 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.

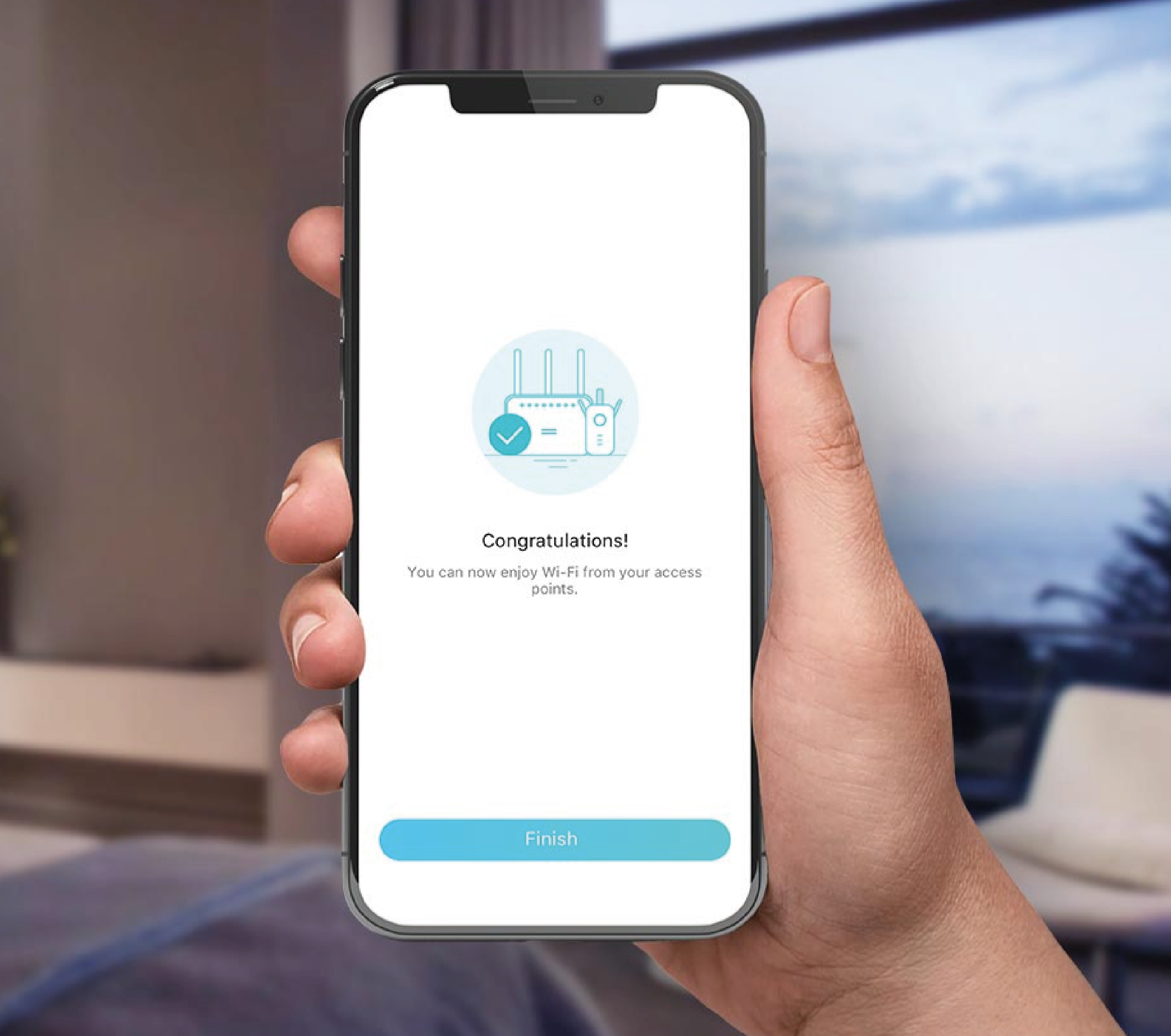

Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX73 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
- Connect 200+ Devices – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.
- More Vents, Less Heat – Improved vents area unleash the full power of the whole machine.
- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with Tether app.
Specifications
Archer AX73 | |
WIRELESS | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
3 Bedroom Houses 6× Fixed High-Performance Antennas
Beamforming
High-Power FEM
4T4R |
WiFi Capacity |
High Dual-Band
4×4 MU-MIMO
OFDMA
Airtime Fairness
DFS
6 Streams |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
Processor | 1.5 GHz Triple-Core CPU |
Ethernet Ports |
1× Gigabit WAN Port
Static Link Aggregation (LAG) available with 2× LAN ports |
USB Support |
1× USB 3.0 Port
Supported Partition Formats:
Supported Functions: |
Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ⎓ 2.5 A |
SECURITY | |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security |
SPI Firewall
HomeShield Security Real-Time IoT Protection |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
Protocols | IPv4 IPv6 |
Service Kits | HomeShield |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
Parental Controls |
HomeShield Parental Controls Custom Profiles |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage |
PHYSICAL | |

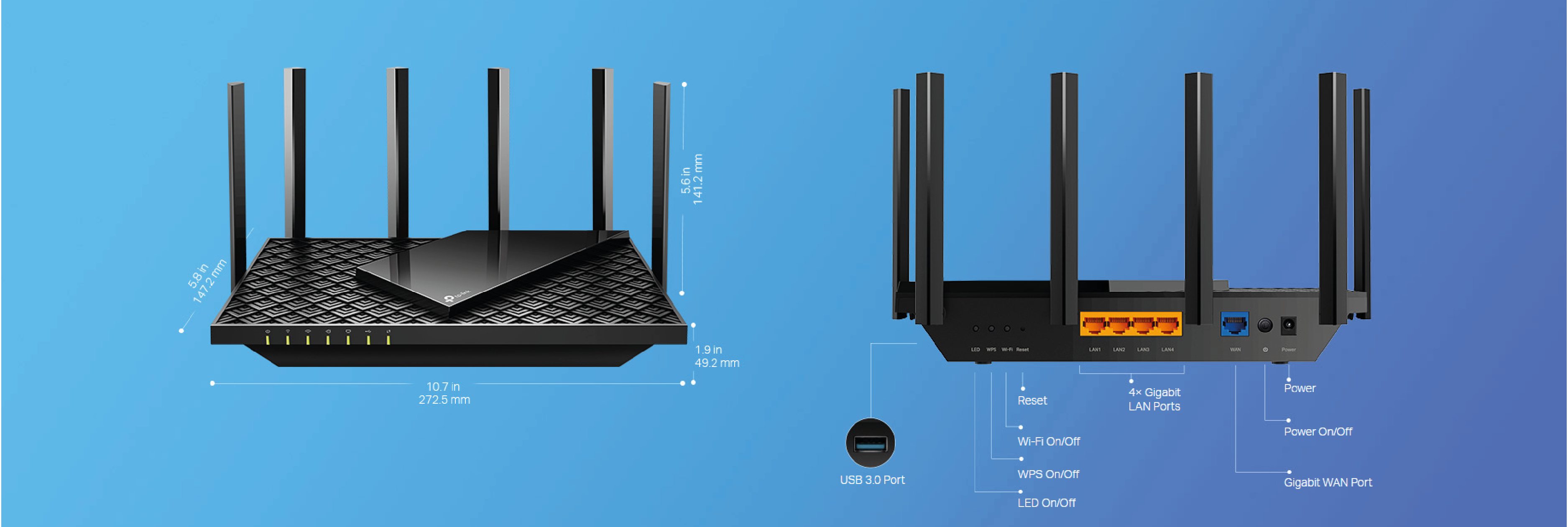

Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
Package Contents | Wi-Fi Router Archer AX73 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
WiFi Reception Sensitivity |
2.4GHz:
|
