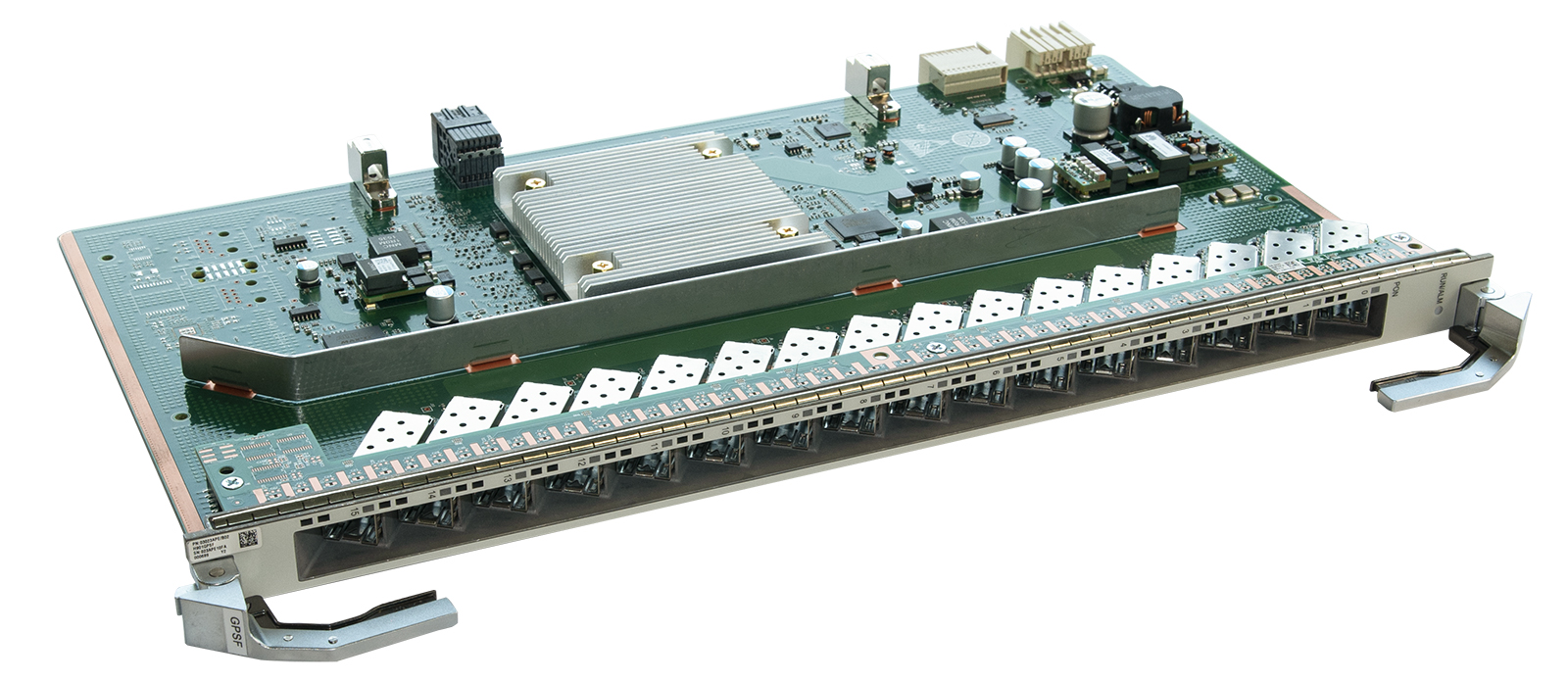

Huawei H901GPSF 16 port GPON board for MA5800 OLT (without SFP modules)
Price
1 600,53 €
1 968,65 € incl. tax
favoriteAdd to wishlist
H901GPSF is a 16-port GPON OLT interface board, which works together with the ONU to implement GPON access services.
High density and energy-conversation
- High density and low power consumption, supporting access of 2K users
- Manual disabling of idle PON ports, saving energy
- 40-km distance of two ONUs under the same PON port, simplifying network planning
Intelligent management channel
- 2-hierarchical HQoS, improving user experience
Easy OAM
- Real-time rogue ONU detection and isolation, ensuing stable service running
- Variable-length OMCI, improving upgrade efficiency and reducing break off time
16 GPON ports (SFP optical module not included)
Specifications
| H901GPSF Board | |
|---|---|
| Function | |
| Forwarding performance | 40 Gbit/s |
| T-CONTs per PON port | 1024 |
| Service flows per PON board | 16384 |
| Maximum frame length | 2004 bytes |
| Maximum number of MAC addresses | 16K |
| Distance of two ONUs under the same PON port | 40 km |
| FEC | Bidirectional |
| CAR group | Supported |
| 2-hierarchical HQoS | Supported |
| Variable-length OMCI | Supported |
| ONU-based shaping and queue-based shaping | Supported |
| Load sharing | Supported |
| Rogue ONU detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Automatic shutdown of an idle port | Supported |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption |
Static: 25 W Maximum: 50 W |
Comparision of GPHF and GPSF boards:
| H901GPHF/H902GPHF | H901GPSF/H902GPSF | |
| Application scenario | FTTC/B/D, D-CCAP, FTTH, and FTTO/FTTM | FTTH |
| Port quantity | 16 | 16 |
| Forwarding capability | 40 Gbit/s | 40 Gbit/s |
| Port rate | Upstream: 1.244 Gbit/s Downstream: 2.488 Gbit/s |
Upstream: 1.244 Gbit/s Downstream: 2.488 Gbit/s |
| Maximum split ratio | 1: 128 | 1: 128 |
| ONU-based shaping | Yes | Yes |
| Controlled optical signal transmission of the optical module | Yes | Yes |
| Temperature query and high temperature alarm | Yes | Yes |
| Automatic shutdown at high temperature | Yes | Yes |
| Energy conservation for service boards | Yes | Yes |
|
Maximum distance difference between 2 ONUs under the same PON port (board capability) |
40 km | 40 km |
| MAC address table size | 131072 | 16384 |
| Downstream FEC | Yes | Yes |
| Upstream FEC | Yes | Yes |
| Rogue ONT detection and isolation | Yes | Yes |
| Assured bandwidth | 1238784 kbit/s | 1238784 kbit/s |
| T-CONTs per GPON port | 1024 | 1024 |
| ONUs per GPON port | 128 | 128 |
| GEM ports per board | 16384 | 16384 |
| GEM ports per GPON port | 3872 | 3872 |
| Service flows per board | 16368 | 16368 |
| 9216-byte jumbo frames | Yes | No |
| Routes/ARP table size | 196608 | 65536 |
| 1588v2 | Yes | No |
| NTP | Yes | Yes |
| HQoS | Yes | No |
| Security (Anti-DoS, Anti-MAC/IP Spoofing) | Yes | Yes |
| Y.1731 PM | Yes | No |
| PON ISSU | Yes | Yes |
| D-CCAP | Yes | No |
| GPON type B protection (single homing) | Yes | Yes |
| GPON type B protection (dual homing) | Yes | No |
| GPON Type C protection (single homing) | Yes | Yes |
| GPON type C protection (dual homing) | Yes | No |
