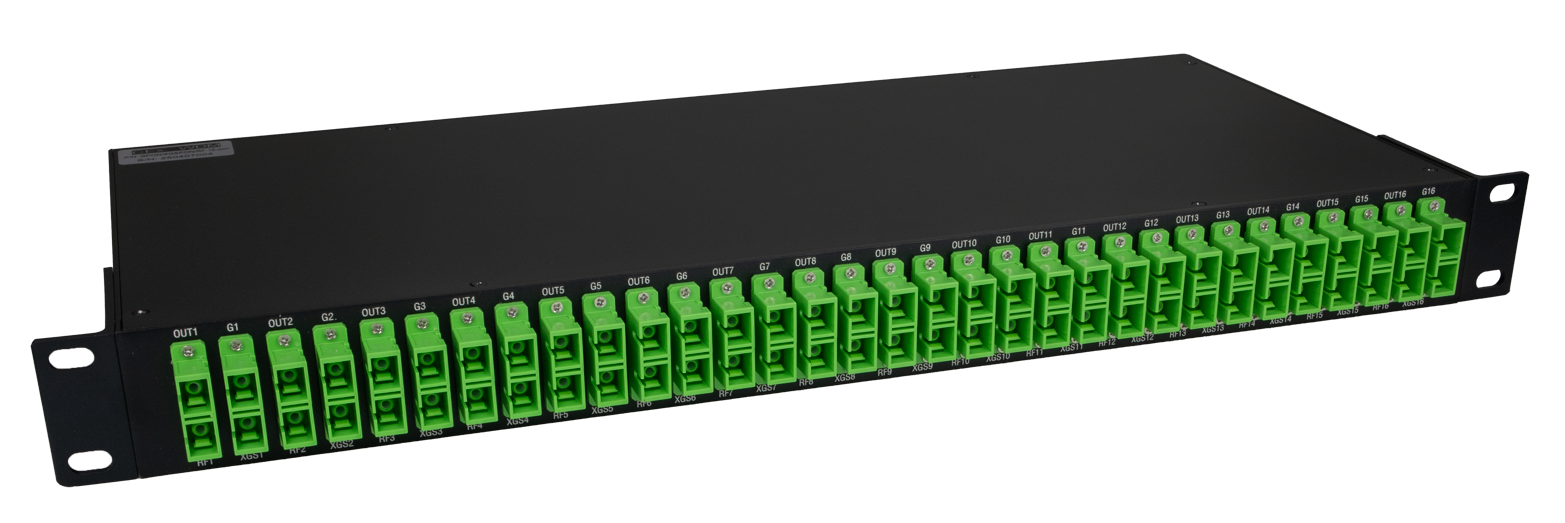

Opton CEX-B-R19-16SA GPON&XGS-PON&RF CEx Multiplexer 16-port SC/APC, Rack 19"
Brand: Opton
Product Code: OP-CEX-B-R19-16SA
Catalog number: 10393
Warranty (months):
Price
542,88
667,74incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

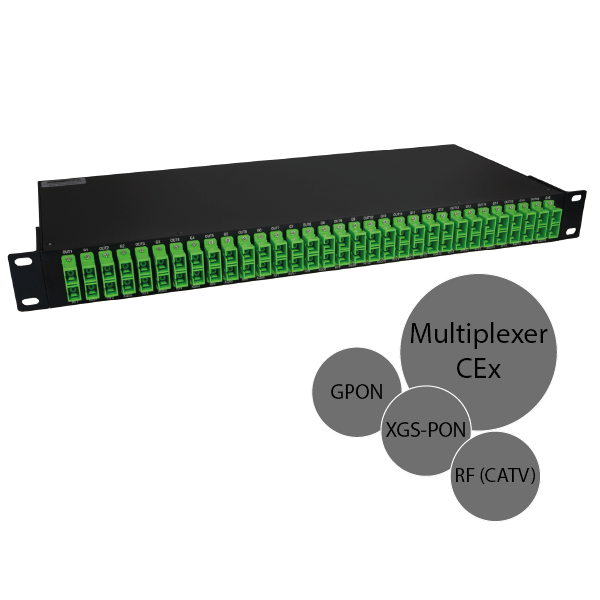

CEx GPON + XGS-PON + RF Multiplexer

The offered product is a CEx multiplexer that enables the combination of different optical transmissions — in this case, GPON, XGS-PON, and RF (CATV). The wavelength range for GPON transmission is 1290–1330 nm and 1480–1500 nm, for XGS-PON it is 1260–1280 nm and 1575–1580 nm, and for RF it is 1540–1565 nm. The multiplexer can also be used to separate a specific transmission from the fiber. For example, if you're using a Combo card, you can isolate just one of the transmissions and connect it to an already utilized fiber.

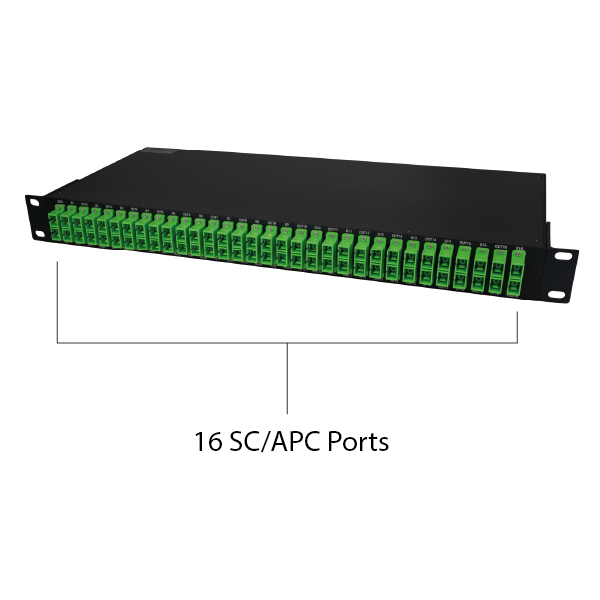

16 SC/APC Ports, 19" Rack-Mount Enclosure

The multiplexer features a total of 16 ports—outputs with the combined, mixed signal. Each output port includes 3 additional input connectors for GPON, XGS-PON, and RF signals. The entire unit is enclosed in a housing designed for installation in a 19" rack cabinet.

Specifications

Opton CEX-B-R19-16SA
GPON transmission
Wavelength

1290 - 1330 nm

1480 - 1500 nm

Max insertion loss 0,8 dB
Isolation ≥30dB
XGS-PON transmission
Wavelength

1260 - 1280 nm

1575 - 1580 nm

Max insertion loss 1,1 dB
Isolation ≥30dB
RF transmission
Wavelength 1540 - 1565 nm
Max insertion loss 1,1 dB
Isolation ≥30dB
Others
Port quantity 16
Chassis

Rack 19" (1U)

Opti SC/APC
PDL ≤ 0.2 dB
Directivity ≥ 50 dB
Return Loss ≥ 50 dB
Operating Temperature -10° ~ 70° C
Storage Temperature -40° ~ 85° C
