Opton PD-3 distribution box 6x SC Simplex

Opton PD-3 distribution box 6x SC Simplex

Brand: Opton

Product Code: OP-PD-3

Catalog number: 6383

Warranty (months):

Price

11,71 €

14,40 € incl. tax

favoriteAdd to wishlist

Description

Note! Image for illustrative purposes only – the accessories shown (tray / adapters) are not included in the package!

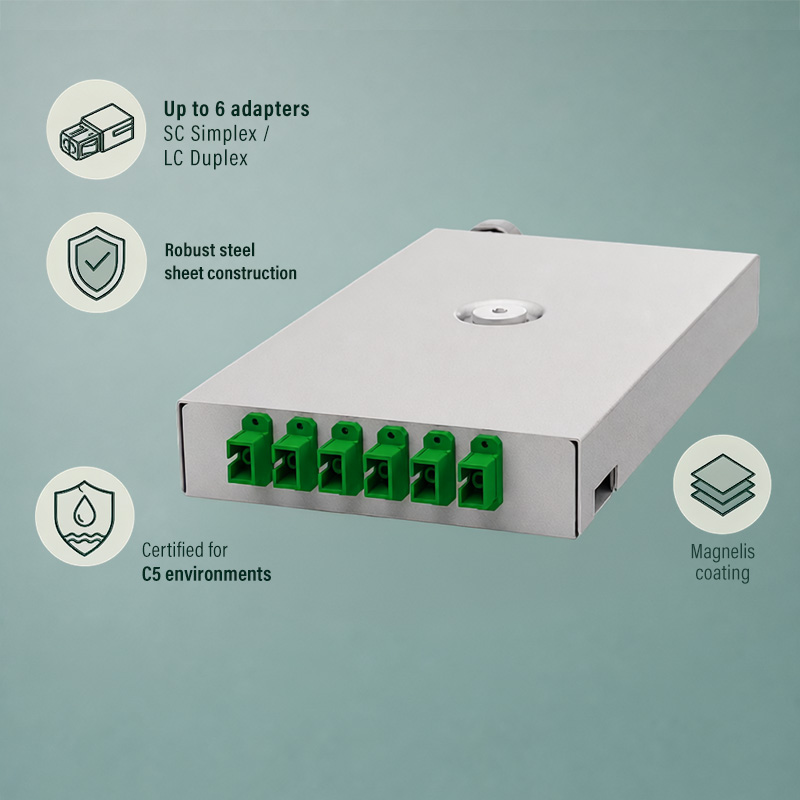

6-Port SC Simplex / LC Duplex Access Distribution Panel

Opton PD-3 is an access distribution panel ideal for applications where you need to splice several fibers in a cable without requiring a bulky enclosure. The construction is made of steel sheet coated with a Magnelis coating and is certified for use in C5 environments.

The front panel is equipped with a frame that accommodates up to 6 SC Simplex / LC Duplex adapters or other adapters of the same dimensions.

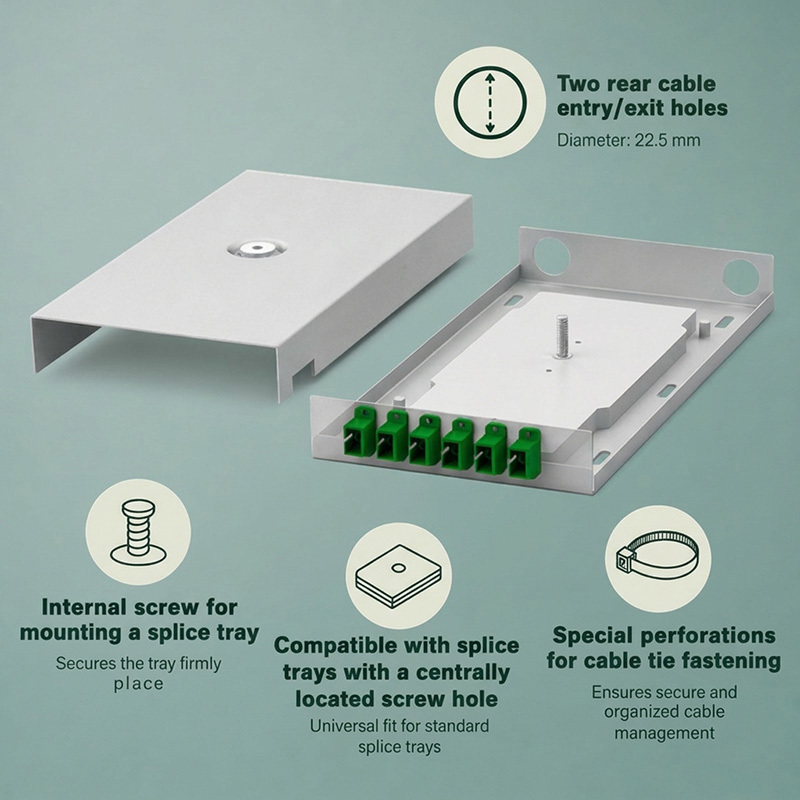

Two 22.5 mm Openings, Space for a Splice Tray

At the rear of the distribution panel, there are two 22.5 mm diameter openings for routing the main cable in and out. Inside, there is a screw for mounting a splice tray. All trays with a centrally located screw hole are compatible. The distribution panel also features special perforations for securing cables with cable ties.

Specifications

Opton PD-3
Dimensions	130 x 30 x 240 mm
Number of SC Simplex ports	6
Compatible adapters	SC Simplex, E2000 Simplex, LC Duplex
Compatible fiber optic splice trays	Trays with a centrally located screw hole
Recommended length of 0.9 mm pigtails	1 - 1.5 mm
Cable entry diameter	22.5 mm
Number of cable entries	2 rear entries
FTP rod holder	Yes
Mounting type	Wall-mounted or inside an enclosure
Operating temperature range	-40°C to 70°C
Protection rating	IP41
Mechanical impact resistance	IK10
Flammability rating	V0 according to UL 94
Weight	0.8 kg
Construction	Powder-coated steel sheet with a Magnelis coating
Colour	Light grey, RAL 7035
