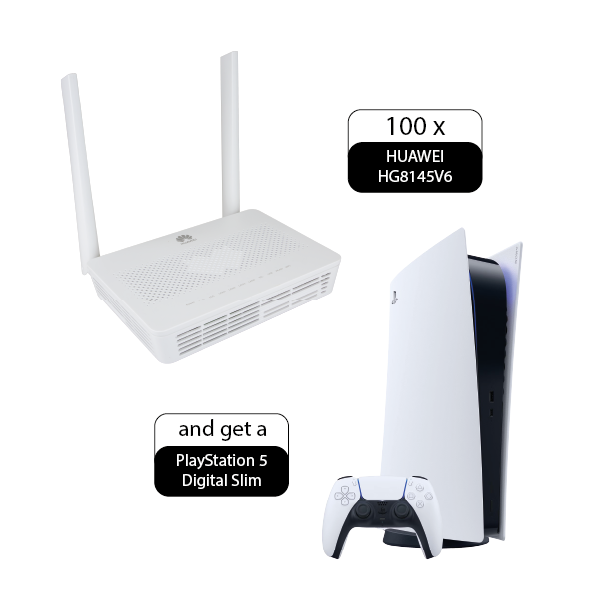

100 units of Huawei HG8145V6 GPON ONT terminal Wi-Fi 5 AC1200, 4x GE, 1x RJ11 (POTS), 1x USB with a PlayStation 5 Digital Slim for 0.25 EUR

100 units of Huawei HG8145V6 GPON ONT terminal Wi-Fi 5 AC1200, 4x GE, 1x RJ11 (POTS), 1x USB with a PlayStation 5 Digital Slim for 0.25 EUR

Brand: Huawei

Product Code: HUA-HG8145V6-PROMO

Catalog number: 10263

Warranty (months):

Special offer

Lowest price in the last 30 days: 4 707,43 € excl. tax

favoriteAdd to wishlist

Description

Promotional Bundle
When you purchase the following set, you pay for 100 units of HG8145V6 client terminals and receive a PlayStation 5 Digital Slim for just 1 EUR (net)!

The Huawei HG8145V6 is a customer ONT terminal designed for use in GPON networks. It supports Wi-Fi 5 wireless transmission, utilizing IEEE 802.11 b/g/n protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac in the 5 GHz band. The maximum theoretical throughput is 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. The terminal features 4 gigabit Ethernet ports (10/100/1000 Mbps) for wired connection of high-performance devices. Additionally, it includes 1 RJ11 POTS port for VoIP service support — allowing a regular analog phone to be connected. An extra benefit is the USB port, which can be used to create an FTP server or share files/printers via SAMBA.

The device is equipped with an SC/APC optical port with a Class B+ laser, and a receiver sensitivity of -27 dBm. The maximum supported transmission throughput, as per the GPON standard, is 2.5 Gbps downstream and 1.25 Gbps upstream.

Specifications

DEVICE PARAMETERS
Huawei HG8145V6
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 300 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50 / 60 Hz
System power supply	12 V DC, 1 A
Static power consumption	6 W
Max. power consumption	12 W
NNI	GPON
UNI	1x POTS 4x GE 1x USB WI-Fi 5 AC1200
Optical connector	SC/APC
Indicators	Power/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL/USB/WLAN/WPS
Installation mode	On the desk, or on the wall
Compliance certification	CE/WiFi
INTERFACE PARAMETERS
GPON Port	• Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF (Wavelength blocking filter) G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or passwordauthentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port	•Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparenttransmission • QinQVLAN• Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/
POTS Port	•Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port	•USB2.0 •FTP-based network storage •File/Print sharing based on SAMBA •DLNA function
WLAN	•IEEE 802.11 b/g/n (2,4 GHz) •IEEE 802.11 a/n/ac (5 GHz) •2 ×2 MIMO (2.4G&5G) •Antenna gain: 5 dBi •WMM/Multiple SSIDs/WPS •2.4G&5G concurrent •Air interface rate: 300 Mb/s (2,4 GHz), 867 Mb/s (5 GHz)
